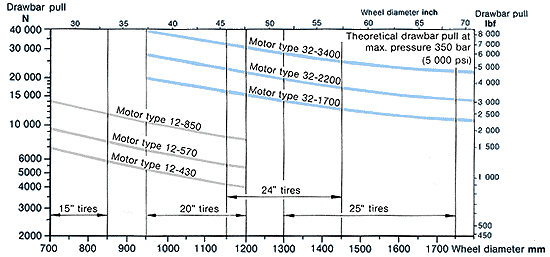

Output Drawbar Pull

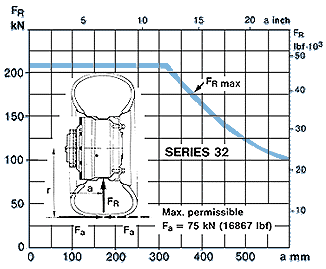

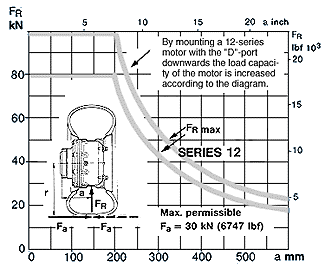

External Loads

FR= radial load, Fa= axial load, r= wheel rolling radius, meters,
a=distance, motor mounting surface to plane containing radial load.

Click here to view the external dimensions of the Series 12 and 32 motors with and without brakes installed.

The hydraulic function of the motor is shown by a geometrical layout of the piston arrangement within the motor.
